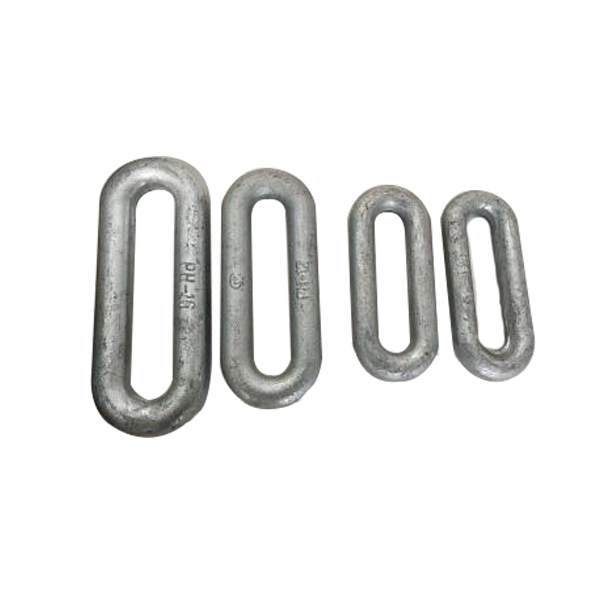

1. Standard ring structure, flexible installation and high compatibility
2. High load capacity, not easy to deform under tension
3. Hot dip galvanized for long outdoor service life
4. Universal standard size for global power projects

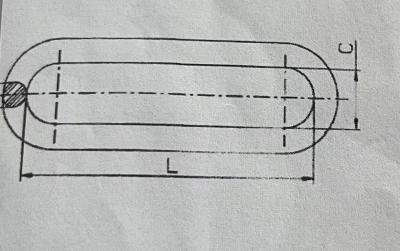

| Type | C（mm） | d（mm） | L（mm） | Devastating Load（kN） | Weight（kg） |
|---|---|---|---|---|---|
| PH-7 | 20 | 16 | 80 | 70 | 0.4 |
| PH-10 | 22 | 18 | 100 | 100 | 0.6 |
| PH-12 | 24 | 20 | 120 | 120 | 0.9 |
| PH-16 | 26 | 22 | 140 | 160 | 1.5 |
